FIND YOUR SHADE SOLUTION
6170MM WIDE SHADE SHEDS
Our 6170 mm wide transportable shade sheds are a standard, high-capacity option designed for applications that require significantly wider coverage.
This width is ideal for double carports, livestock shelter, multiple vehicles and wide open areas, providing generous internal space while maintaining the benefits of a transportable, engineered design.
Ready to find your shade shed? Tell us what you need to shelter and enquire now for a quote.
- Shed type
- Double carport Shade shed
- Width
- 6170 mm 6.17 metres
- Ideal for
- Multiple vehicles & livestock Wide open & agricultural areas
More information
Wide coverage for multiple vehicles, livestock and more

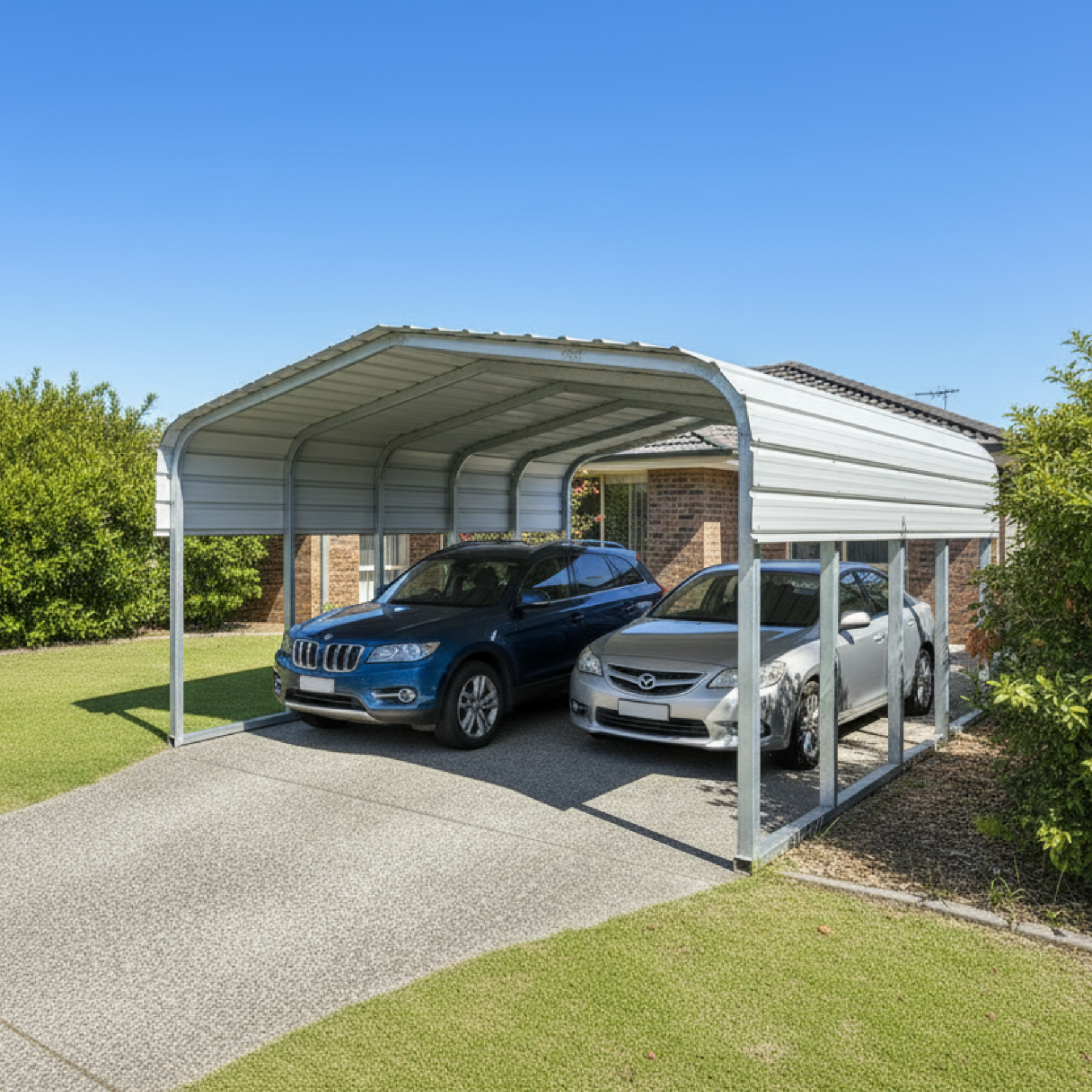

Our 6170 mm wide transportable shade sheds provide generous coverage for applications requiring a large, unobstructed sheltered area. This width comfortably accommodates two vehicles and is also well suited to large garden areas, spa shelters, livestock and other applications requiring additional space.
A fully galvanised 75 mm × 50 mm × 2 mm RHS frame and 0.42 COLORBOND® exterior sheeting form the basis of the design. Our patented “No Rust” bend technology provides a 30% stronger frame, with this configuration carrying a W50/C2 cyclonic wind rating.
The slip-fit connection system allows the structure to be constructed in hours without cutting or welding. It can be erected on a concrete slab, dirt or uneven ground and comes complete with certified engineering drawings.

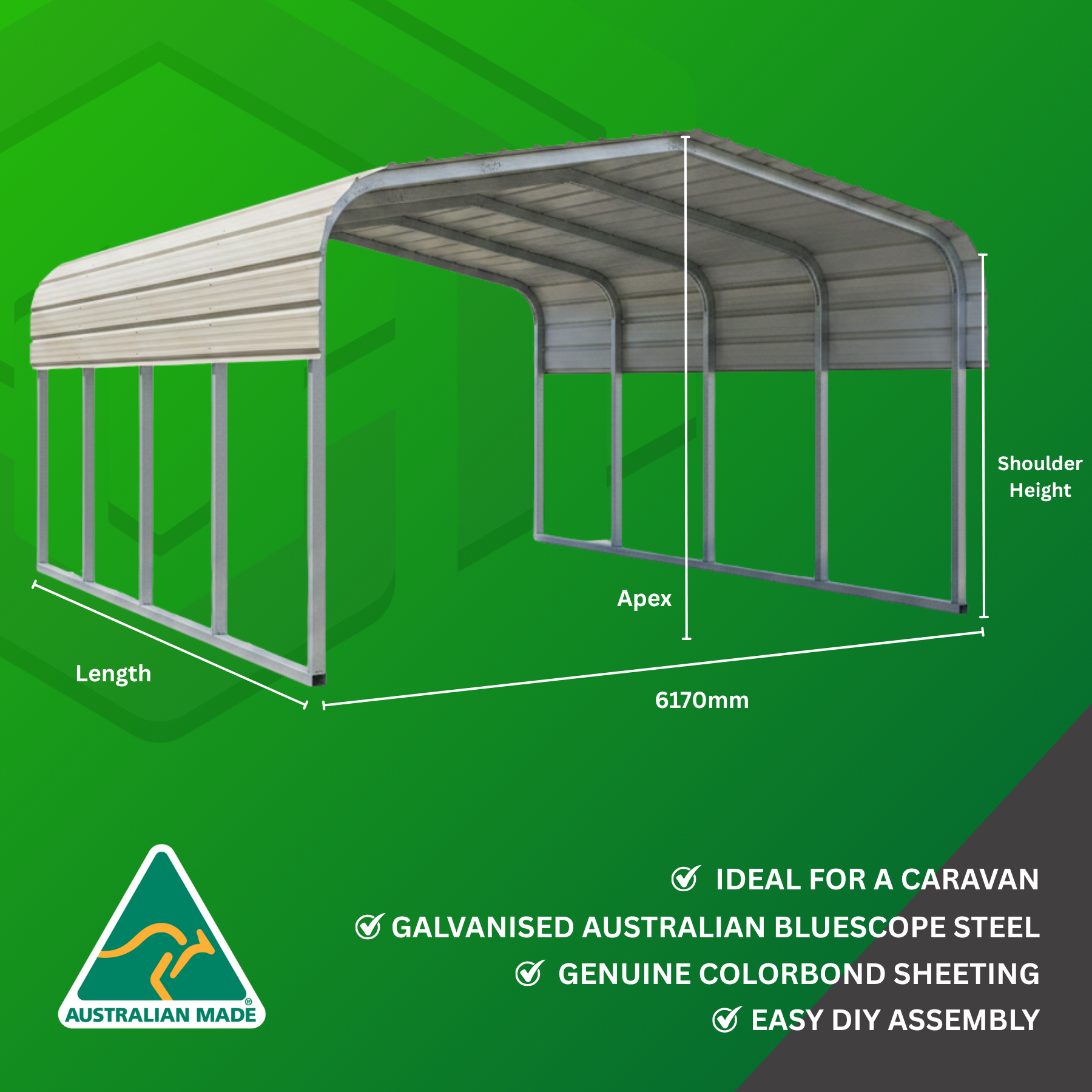

6170 mm wide shade shed specifications
| Width | 6170 mm (6.17 metres). |
|---|---|
| Frame | Fully galvanised 75 mm × 50 mm × 2 mm RHS frame. |
| Wind rating | W50/C2 cyclonic wind rating. |
| Exterior & colours | 0.42 COLORBOND® exterior sheeting. Choose from 20+ colours. View the COLORBOND® colour range . |
| Roof sheeting | Continues 400 mm past the shoulder of the frame. |
| Patented design | Patent no. 20 0110 0106. |
| Bend technology | “No Rust” bend technology providing a 30% stronger frame. |
| Assembly | Designed to be constructed in hours. |
| Connection system | Slip-fit connections. No cutting or welding required. |
| Installation | Can be erected on a concrete slab, dirt or uneven ground. |
| Engineering | Supplied with certified engineering drawings. |
| Ideal for | Two vehicles, large garden areas, spa shelters, livestock, multiple vehicles and other wide-coverage applications. |
Planning your 6170 mm shade shed
Choosing the right fit
The 6170 mm width provides generous space for applications requiring broader coverage. It can comfortably accommodate two vehicles side by side and is also suited to livestock, large garden areas, spa shelters and other wide open spaces.
Installation & anchoring
The slip-fit connection system requires no cutting or welding and allows the structure to be constructed in hours. It can be erected on a concrete slab, dirt or uneven ground.
Choosing your colour
Choose from more than 20 COLORBOND® colours for the exterior sheeting, allowing you to select an option that complements your home, property, agricultural site or surrounding structures.
Preparing your quote
Tell us what you plan to shelter, how much space you have available and where the shed will be installed. Providing details about your vehicles, livestock, site conditions or intended use will help our team discuss the right setup with you.
Wide coverage for multiple vehicles, livestock and more
Our 6170 mm wide transportable shade sheds provide generous coverage for applications requiring a large, unobstructed sheltered area. This width comfortably accommodates two vehicles and is also well suited to large garden areas, spa shelters, livestock and other applications requiring additional space.
A fully galvanised 75 mm × 50 mm × 2 mm RHS frame and 0.42 COLORBOND® exterior sheeting form the basis of the design. Our patented “No Rust” bend technology provides a 30% stronger frame, with this configuration carrying a W50/C2 cyclonic wind rating.
The slip-fit connection system allows the structure to be constructed in hours without cutting or welding. It can be erected on a concrete slab, dirt or uneven ground and comes complete with certified engineering drawings.
6170 mm wide shade shed specifications
| Width | 6170 mm (6.17 metres). |
|---|---|
| Frame | Fully galvanised 75 mm × 50 mm × 2 mm RHS frame. |
| Wind rating | W50/C2 cyclonic wind rating. |
| Exterior & colours | 0.42 COLORBOND® exterior sheeting. Choose from 20+ colours. View the COLORBOND® colour range . |
| Roof sheeting | Continues 400 mm past the shoulder of the frame. |
| Patented design | Patent no. 20 0110 0106. |
| Bend technology | “No Rust” bend technology providing a 30% stronger frame. |
| Assembly | Designed to be constructed in hours. |
| Connection system | Slip-fit connections. No cutting or welding required. |
| Installation | Can be erected on a concrete slab, dirt or uneven ground. |
| Engineering | Supplied with certified engineering drawings. |
| Ideal for | Two vehicles, large garden areas, spa shelters, livestock, multiple vehicles and other wide-coverage applications. |
Planning your 6170 mm shade shed
Choosing the right fit
The 6170 mm width provides generous space for applications requiring broader coverage. It can comfortably accommodate two vehicles side by side and is also suited to livestock, large garden areas, spa shelters and other wide open spaces.
Installation & anchoring
The slip-fit connection system requires no cutting or welding and allows the structure to be constructed in hours. It can be erected on a concrete slab, dirt or uneven ground.
Choosing your colour
Choose from more than 20 COLORBOND® colours for the exterior sheeting, allowing you to select an option that complements your home, property, agricultural site or surrounding structures.
Preparing your quote
Tell us what you plan to shelter, how much space you have available and where the shed will be installed. Providing details about your vehicles, livestock, site conditions or intended use will help our team discuss the right setup with you.
See how customers around Australia are using their Shade Sheds
Customer Shade Sheds
Hear From Our Customers
Don't just take our word for it. Hear from customers across Australia about their experience with Transportable Shade Sheds.
Des's Experience
Hear from Des about his experience choosing a Transportable Shade Shed and why it was the right solution for his property.
Graham's Experience
Graham shares his experience with Transportable Shade Sheds and how his shed has provided practical, reliable protection.
David's Experience
See what David has to say about his experience with Transportable Shade Sheds, from ordering through to the finished shed.
Ready to find the right Shade Shed?
Get a QuoteHow It Works
Whether you’re buying online or organising a custom solution, we keep the process straightforward from first step to installation.
Buy Online or Request a Quote
Choose a standard size and purchase online, or tell us about your site if you need a custom size, configuration, or multiple sheds.
Manufactured & Supplied as One Kit
Your shade shed is manufactured in Australia and supplied as one complete kit — frame and sheeting together, ready for delivery.
Delivered Ready to Install
Delivered by crane truck directly to your site and placed where needed, ready for straightforward installation.
Frequently asked questions
The 6170W range is ideal for applications requiring broad, unobstructed coverage. Its 6.17 metre width makes it well suited to double carports, multiple vehicles, livestock shade, large garden or spa areas, trailers and agricultural or rural applications.
Yes. The 6170W is commonly used as a double carport and provides enough width to comfortably shelter two vehicles side by side while allowing space for access.
Yes. The generous 6.17 metre width makes the 6170W a practical option for livestock shade in yards, paddocks and holding areas where broad coverage, airflow and room for movement are important.
The 6170W configuration shown on this page has a W50/C2 cyclonic wind rating. If you're unsure which wind rating is required for your location or site, speak with our team when requesting your quote.
Yes. The structure can be erected on a concrete slab, dirt or uneven ground. Your site conditions should be discussed with our team when enquiring so the appropriate setup can be considered.
