FIND YOUR SHADE SOLUTION
12000MM WIDE SHADE SHEDS
Our 12000 mm wide transportable shade sheds are one of our largest industrial-grade standard widths, designed for applications requiring very wide, unobstructed internal space, increased structural reinforcement and higher clearances.
This width is ideal for aircraft storage, extremely large machinery, multiple heavy vehicles, rural infrastructure and commercial operations where strength, access and substantial coverage are essential.
Ready to find your shade shed? Tell us what you need to shelter and enquire now for a quote.
- Shed type
- Industrial Ultra-wide shade shed
- Width
- 12000 mm 12 metres
- Ideal for
- Aircraft & heavy machinery Large-scale industrial & rural use
More information
Ultra-wide industrial shelter for large assets and equipment
Our 12000 mm wide transportable shade sheds provide substantial, unobstructed coverage for large-scale industrial applications. This width is well suited to trucks, industrial vehicles, aeroplanes, helicopters, large machinery and other applications requiring significant internal space and clearance.
A fully galvanised 150 mm × 50 mm × 2 mm RHS frame and 0.42 COLORBOND® exterior sheeting form the basis of the design. Our patented “No Rust” bend technology provides a 30% stronger frame, with this configuration carrying a W41/N3 wind rating.
W18 industrial shade sheds include truss braces for additional structural support, while some configurations may also require shoulder bracing depending on shed height. The slip-fit connection system allows assembly without cutting or welding.

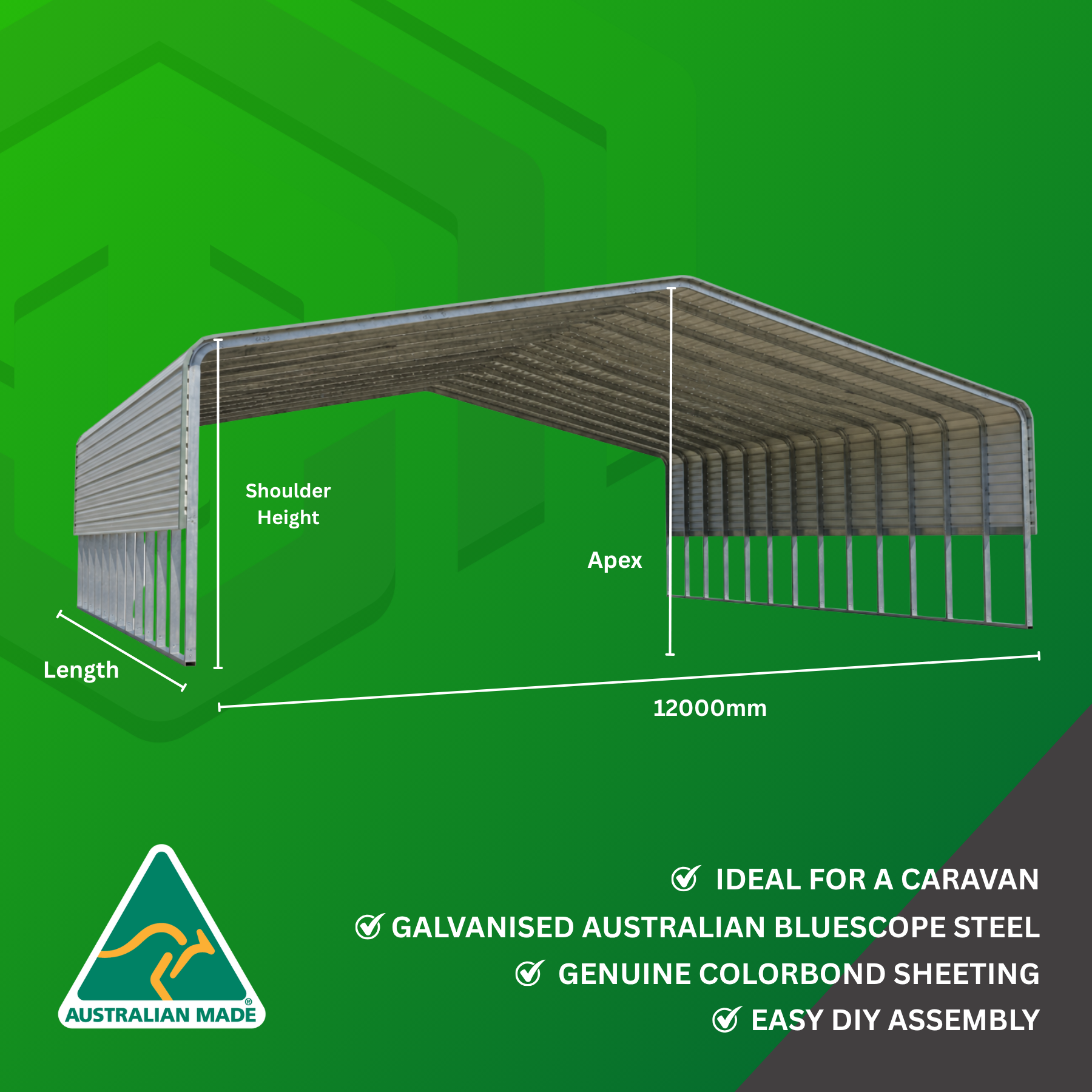

12000 mm wide shade shed specifications
| Width | 12000 mm (12 metres). |
|---|---|
| W18C1 configuration | 12000 mm W × 10200 mm L × 4700 mm apex, less approximately 1060 mm at the shoulder. |
| Frame | Fully galvanised 150 mm × 50 mm × 2 mm RHS frame. |
| Wind rating | W41/N3 wind rating. |
| Exterior & colours | 0.42 COLORBOND® exterior sheeting. Choose from 20+ colours. View the COLORBOND® colour range . |
| Roof sheeting | Continues 400 mm past the shoulder of the frame. |
| Patented design | Patent no. 20 0110 0106. |
| Bend technology | “No Rust” bend technology providing a 30% stronger frame. |
| Shoulder bracing | Some industrial sheds may require shoulder bracing depending on shed height. Where required, bracing extends approximately 1 metre down from the shoulder on a 30° angle. |
| Truss bracing | W18 industrial shade sheds include truss braces. The truss brace drops approximately 700 mm from the centre of the shade shed. |
| Assembly | Designed to be constructed in hours. |
| Connection system | Slip-fit connections. No cutting or welding required. |
| Installation | Can be erected on a concrete slab, dirt or uneven ground. |
| Engineering | Supplied with certified engineering drawings. |
| Ideal for | Trucks, industrial vehicles, aeroplanes, helicopters, large machinery and other large-scale applications. |
Planning your 12000 mm shade shed
Choosing the right fit
The 12000 mm width is designed for applications requiring significant clear span coverage. Consider the overall width, length and height of your vehicles, machinery or aircraft, along with the clearance required for safe access and movement.
Bracing & clearance
W18 industrial shade sheds include truss braces that drop approximately 700 mm from the centre of the structure. Depending on shed height, shoulder bracing may also be required and extends approximately 1 metre down from the shoulder on a 30° angle.
Installation & site conditions
The slip-fit connection system requires no cutting or welding and allows the structure to be constructed in hours. The shed can be erected on a concrete slab, dirt or uneven ground.
Preparing your quote
Tell us what you need to shelter, its overall dimensions, required clearance and where the shed will be installed. Providing information about your site and intended use will help our team discuss the most suitable configuration.
Ultra-wide industrial shelter for large assets and equipment
Our 12000 mm wide transportable shade sheds provide substantial, unobstructed coverage for large-scale industrial applications. This width is well suited to trucks, industrial vehicles, aeroplanes, helicopters, large machinery and other applications requiring significant internal space and clearance.
A fully galvanised 150 mm × 50 mm × 2 mm RHS frame and 0.42 COLORBOND® exterior sheeting form the basis of the design. Our patented “No Rust” bend technology provides a 30% stronger frame, with this configuration carrying a W41/N3 wind rating.
W18 industrial shade sheds include truss braces for additional structural support, while some configurations may also require shoulder bracing depending on shed height. The slip-fit connection system allows assembly without cutting or welding.
12000 mm wide shade shed specifications
| Width | 12000 mm (12 metres). |
|---|---|
| W18C1 configuration | 12000 mm W × 10200 mm L × 4700 mm apex, less approximately 1060 mm at the shoulder. |
| Frame | Fully galvanised 150 mm × 50 mm × 2 mm RHS frame. |
| Wind rating | W41/N3 wind rating. |
| Exterior & colours | 0.42 COLORBOND® exterior sheeting. Choose from 20+ colours. View the COLORBOND® colour range . |
| Roof sheeting | Continues 400 mm past the shoulder of the frame. |
| Patented design | Patent no. 20 0110 0106. |
| Bend technology | “No Rust” bend technology providing a 30% stronger frame. |
| Shoulder bracing | Some industrial sheds may require shoulder bracing depending on shed height. Where required, bracing extends approximately 1 metre down from the shoulder on a 30° angle. |
| Truss bracing | W18 industrial shade sheds include truss braces. The truss brace drops approximately 700 mm from the centre of the shade shed. |
| Assembly | Designed to be constructed in hours. |
| Connection system | Slip-fit connections. No cutting or welding required. |
| Installation | Can be erected on a concrete slab, dirt or uneven ground. |
| Engineering | Supplied with certified engineering drawings. |
| Ideal for | Trucks, industrial vehicles, aeroplanes, helicopters, large machinery and other large-scale applications. |
Planning your 12000 mm shade shed
Choosing the right fit
The 12000 mm width is designed for applications requiring significant clear span coverage. Consider the overall width, length and height of your vehicles, machinery or aircraft, along with the clearance required for safe access and movement.
Bracing & clearance
W18 industrial shade sheds include truss braces that drop approximately 700 mm from the centre of the structure. Depending on shed height, shoulder bracing may also be required and extends approximately 1 metre down from the shoulder on a 30° angle.
Installation & site conditions
The slip-fit connection system requires no cutting or welding and allows the structure to be constructed in hours. The shed can be erected on a concrete slab, dirt or uneven ground.
Preparing your quote
Tell us what you need to shelter, its overall dimensions, required clearance and where the shed will be installed. Providing information about your site and intended use will help our team discuss the most suitable configuration.
See how customers around Australia are using their Shade Sheds
Customer Shade Sheds
Hear From Our Customers
Don't just take our word for it. Hear from customers across Australia about their experience with Transportable Shade Sheds.
Des's Experience
Hear from Des about his experience choosing a Transportable Shade Shed and why it was the right solution for his property.
Graham's Experience
Graham shares his experience with Transportable Shade Sheds and how his shed has provided practical, reliable protection.
David's Experience
See what David has to say about his experience with Transportable Shade Sheds, from ordering through to the finished shed.
Ready to find the right Shade Shed?
Get a QuoteHow It Works
Whether you’re buying online or organising a custom solution, we keep the process straightforward from first step to installation.
Buy Online or Request a Quote
Choose a standard size and purchase online, or tell us about your site if you need a custom size, configuration, or multiple sheds.
Manufactured & Supplied as One Kit
Your shade shed is manufactured in Australia and supplied as one complete kit — frame and sheeting together, ready for delivery.
Delivered Ready to Install
Delivered by crane truck directly to your site and placed where needed, ready for straightforward installation.
Frequently asked questions
The 12000 mm range is designed for large-scale industrial, commercial and rural applications requiring substantial clear span coverage. It is suitable for aircraft, trucks, industrial vehicles, extremely large machinery, multiple heavy vehicles and other large assets.
Yes. The 12 metre width provides substantial open space for aircraft and aviation-related storage. The overall dimensions and required clearances of your aircraft should be provided when requesting a quote so the most suitable configuration can be discussed.
Yes. The 12000 mm width is well suited to sheltering multiple trucks, trailers or heavy vehicles beneath a single structure. The exact capacity will depend on the dimensions of the vehicles and the clearance required between them.
The W18C1 12000 mm configuration has a W41/N3 wind rating. If you're unsure whether this configuration is suitable for your location or site requirements, speak with our team when requesting a quote.
Yes. W18 industrial shade sheds include truss braces, which drop approximately 700 mm from the centre of the shade shed. This should be considered when determining the clearance required for machinery, vehicles or aircraft.
